Floor Mounted Stand Battery Features

• Power your home 24/7 - Battery backup for home appliances.
• Modular structure design - Form combination of various energy battery layers, easy maintenance, plug and use.
• Rugged and Durable - It can operate in deficit mode during long periods of time.
• High energy density - More capacity with less weight and volume.
• High charge and discharge currents - Fast charges and discharges are possible.
• Stabilize voltage and grid frequency - Flexible charge voltages and Limiting grid congestion.

 Technical Specifications 🔧

Model	TD-01-5KWH	TD-02-10KWH	TD-03-15KWH
Energy Capacity(Kwh)	5kwh	10kwh	15kwh
Norminal Voltage(V)	51.2v	51.2v	51.2v
Rated Capacity(Ah)	100Ah	200Ah	300Ah
Dimension(mm)	760*480*215	775*480*245	920*485*255
Weight(Kg)	50kg	88kg	120kg
Maximum Continuous Charge Current	200A	200A	200A
Maximum Continuous Discharge Current	200A	200A	200A
Cycle Times	＞6000	＞6000	＞6000
Cell Series Numbers(pcs)	16S1P	16S1P	16S1P
Charge Cut-off Voltage(V)	58.4	58.4	58.4
Discharge Cut-off Voltage(V)	43.2	43.2	43.2

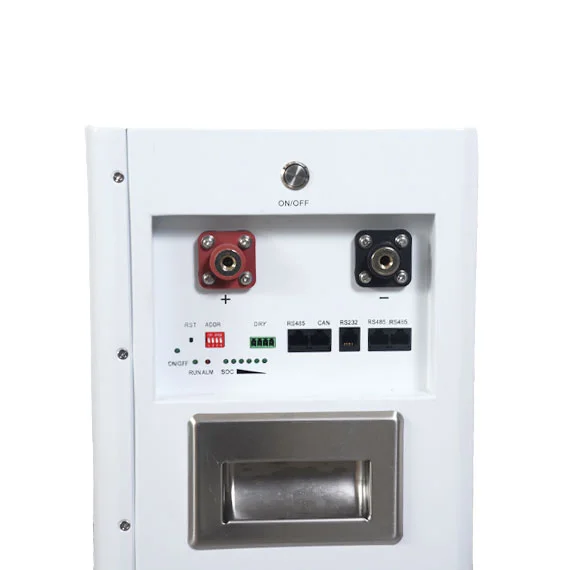

Comms Ports	RS232/RS485/CAN	RS232/RS485/CAN	RS232/RS485/CAN
Battery Parallel interface	15 Unit Parallel	15 Unit Parallel	15 Unit Parallel
Warranty	10 Years	10 Years	10 Years
Certifications	CE, UL, MSDS, IEC, UN38.3, ISO	CE, UL, MSDS, IEC, UN38.3, ISO	CE, UL, MSDS, IEC, UN38.3, ISO
Charge Current (Std / Max)	0.2 C / 1 C @ 25 °C	0.2 C / 1 C @ 25 °C	0.2 C / 1 C @ 25 °C
Discharge Current (Std / Max)	0.5 C / 0.6 C @ 25 °C	0.5 C / 0.6 C @ 25 °C	0.5 C / 0.6 C @ 25 °C
Operating Temp (Charge / Discharge)	0 – 60 °C / –20 – 60 °C	0 – 60 °C / –20 – 60 °C	0 – 60 °C / –20 – 60 °C

Home Energy Storage Battery characteristics ⚡

High Inverter Compatibility	Home Automation
≥15 Years Life Span	New Grade A LFP cells
WIFI-Communication	Cell time ≥6500 Cycles
CANbus Standard Connection	IP65 Ingress Rated
Smart BMS System	Intelligent Monitoring System
Certification: CE, IEC, UL, UN38.3, and ROHS	Lower Maintenance and Safe

Solar Inverters Compatible

The energy storage battery supports RS485 and CAN communication interfaces, offering strong compatibility and can be connected with most mainstream inverters on the market, ensuring high practicality. If you are concerned about compatibility with your home inverter, please contact us. Our engineers will provide practical advice and customized services.

Why Choose ELECNO

ELECNO is a professional manufacturer of lithium Lifepo4 batteries with over 20 years’ experience. We provide the solar energy storage solutions, mainly focusing on home solar energy system, container battery energy storage system, industrial and commercial energy storage system.
We offer OEM/ODM services for overseas ESS distributors and factories, allowing you to customize our stackable lifepo4 battery solutions to align with your brand.

LifePO4 Battery Certification

All energy storage batteries have undergone rigorous testing and obtained certification(CE, IEC, UL, UN38.3, and ROHS).

Packing & Delivery
