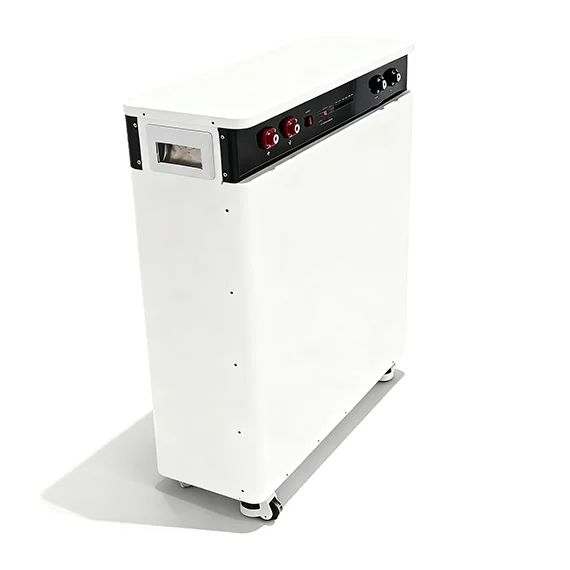

51.2V 600Ah 30kWh Floor-Mounted LiFePO4 Battery

The 30kWh Floor Mounted Lifepo4 Battery is a high-capacity energy storage unit designed for homes, commercial buildings, small factories, and off-grid sites. It uses long-life LiFePO₄ cells and supports fast charge/discharge for stable power at any time of the day. Users can pair it with solar systems or hybrid inverters to cut grid use, protect against outages, and gain long-term energy savings. The compact floor-mounted design allows easy installation, while smart monitoring ensures safe and efficient operation throughout its life cycle.

Informations

ModelELC-TD30
Capacity30KWH
Service10 Years Warranty
SupportOEM, ODM, OBM, Customized
CertificatesCE, UL, MSDS, IEC, UN38.3, ISO, etc.

This 51.2V 600Ah 30kWh floor-mounted LiFePO4 battery is intended for larger home backup and light-commercial storage projects. Project fit depends on usable energy, inverter power, BMS current, CAN or RS485 protocol, critical loads, installation conditions and the order-specific warranty—not capacity alone.

30kWh Floor-Mounted LiFePO4 Battery Features

30kWh nominal energy: usable AC energy depends on SOC reserve, inverter efficiency, temperature and BMS limits.
51.2V 600Ah LiFePO4 battery platform: confirm the final cell, module, BMS and model-specific datasheet before order approval.
Floor-mounted integrated design: check floor loading, service clearance, ventilation, cable route and indoor installation conditions.
Charge and discharge performance: match the inverter power and battery current to the confirmed BMS continuous and peak limits.
Inverter communication: confirm CAN or RS485 protocol, firmware and parameter mapping for the exact inverter model.
BMS protection: verify voltage, current, temperature, SOC, alarm and recovery behavior during commissioning.
Remote monitoring option: confirm the gateway, app or web portal, data ownership and remote-support scope.

51.2V 600Ah 30kWh Battery Specifications

Product item	Listed parameter	Product item	Listed parameter
Nominal voltage	51.2 V (16S2P)	Overall dimensions	950 x 810 x 285 mm
Nominal capacity	600 Ah	Net weight	215 kg +/- 0.5 kg
Nominal battery energy	30 kWh	Battery chemistry	LiFePO4
Working voltage	44-57 V	Listed service life	10 years
Maximum charging current	Confirm on model-specific datasheet	Charging voltage	58.4 V
Maximum discharge current	Confirm on model-specific datasheet	Parallel quantity	Confirm quantity and BMS protocol
Applicable temperature	-20 to 65 degrees C	Inverter compatibility	Confirm CAN/RS485 protocol, model and firmware
Overload protection	300 A listed; confirm duration and BMS behavior	Cycle life	8,000 cycles listed; confirm test conditions and end-of-life criterion
Communication	RS485 / RS232 / CAN	Package size	990 x 860 x 440 mm
Warranty period	10 years listed; confirm terms and exclusions	Documentation	Request model-specific datasheet, protocol and warranty

Specification note: 51.2 V x 600 Ah is approximately 30.72 kWh nominal before the configured voltage window, SOC reserve and system losses. Confirm usable energy and every current limit on the order-specific datasheet.

Inverter Communication Compatibility

30kWh LiFePO4 Battery Project Fit

LiFePO4 chemistry can support long cycle life, but the listed 8,000-cycle value must be checked against depth of discharge, temperature, charge/discharge rate and the manufacturer's end-of-life criterion.

The floor-mounted enclosure avoids wall loading and separate rack assembly, but it still requires verified floor capacity, indoor environmental conditions, service clearance, cable protection and emergency access. Inverter compatibility must be confirmed by protocol and firmware, not by brand name alone.

Charge power, discharge power and surge support depend on the confirmed BMS current limits and inverter settings. If remote monitoring is required, confirm the gateway, data points, alarm history, user access and remote-support responsibility before ordering.

51.2V 600Ah 30kWh floor-mounted LiFePO4 battery video

30kWh LiFePO4 Battery Runtime and Load Planning

A 30kWh LiFePO4 battery should be sized from the critical-load table, backup duration and inverter power—not from nominal capacity alone. A 51.2V 600Ah platform is approximately 30.72 kWh nominal, while usable AC energy is lower after SOC reserve, inverter losses, temperature limits and BMS protection.

Average load	Ideal nominal-energy division	Planning note
3 kW	About 10 hours before reserve and losses	Confirm startup surges and whether loads operate continuously.
5 kW	About 6 hours before reserve and losses	Check inverter efficiency, usable SOC and auxiliary consumption.
10 kW	About 3 hours before reserve and losses	Confirm BMS discharge current, inverter rating and cable protection.

These are arithmetic reference values, not guaranteed runtime. Use interval load data and the 30kWh battery runtime guide for a more complete load review.

51.2V 600Ah Battery and Inverter Checklist

Confirm inverter battery-voltage window, continuous and peak power, and maximum charge/discharge current.
Obtain the CAN or RS485 protocol, supported firmware, parameter map and commissioning screenshots.
Check BMS continuous current, peak duration, overload recovery, low-temperature charging and alarm behavior.
Separate nominal 30kWh from usable kWh after SOC reserve, degradation assumptions and conversion losses.
Confirm cable size, breaker or fuse, disconnect, grounding, short-circuit protection and installer responsibility.

Use the 30kWh 600Ah inverter-fit checklist and the CAN/RS485 battery matching guide before approving the inverter.

Installation and Quote Information Required

Installation country, indoor environment, ambient range, floor loading, clearance and cable distance.
Critical-load list, surge loads, required backup hours, PV size and grid or generator operating mode.
Inverter model, voltage window, power, protocol, firmware and maximum battery current.
Required usable energy, SOC reserve, daily cycles, parallel expansion and monitoring requirements.
Shipping term, package weight, unloading method, commissioning, training and warranty support.

Compare the home energy storage range, check the floor-mounted battery installation guide, or send the load and inverter data for a configuration review.

30kWh Floor-Mounted LiFePO4 Battery FAQ

Does 51.2V 600Ah equal 30kWh?

It equals approximately 30.72 kWh nominal. Usable AC energy is lower and depends on the configured voltage window, SOC reserve, inverter efficiency, temperature and BMS limits.

Can this battery work with any 51.2V inverter?

No. Voltage overlap is only one requirement. Current limits, CAN or RS485 protocol, firmware, parameter mapping and protection behavior must also match.

Can a 30kWh battery support small commercial backup?

Potentially, but the decision requires a load profile, surge assessment, inverter power, BMS current, backup duration and installation review.

What should be confirmed before shipment?

Confirm the model label, final datasheet, BMS limits, protocol, dimensions, weight, serial numbers, test records, packing, warranty terms and commissioning scope.
