C&I ESS EMS Integration Checklist: Point Lists, Meters and Control Testing

A C&I ESS EMS integration checklist should prove that the battery, PCS, meters and site controls behave as one system. The energy management system (EMS) decides when the battery charges, discharges, limits export or supports backup. If a register is scaled incorrectly, a meter is installed at the wrong point or a communication loss has no defined fallback, a well-built battery can still miss its duty or trip at the wrong time.

This guide is for C&I energy storage buyers, EPC teams, distributors and service providers. It does not replace the supplier’s interface documents, the utility’s requirements or the responsible engineer’s design. Use it to define scope before the order, prepare the site acceptance test and keep an integration record that the owner can maintain after handover.

What EMS integration has to prove

Integration is complete when the site controller can read the right data, issue the right commands and handle faults in a predictable way. That means more than a green communication icon. The team should be able to show which device measures site load, which device controls the PCS setpoint, how often values are refreshed and what happens when a link fails.

Start from the project duty. A peak-shaving project depends on accurate demand measurement and fast enough response. A solar self-consumption project depends on PV, load and export measurement. A backup project depends on transfer logic, reserve SOC and restart sequence. The C&I ESS quote checklist helps collect these requirements before the controls scope is priced.

Define the control architecture before wiring

Draw a simple control diagram that shows the EMS, PCS, BMS, site meters, PV inverters, gensets, protection relays, building management system and any remote platform. Mark each link with its protocol, physical medium, direction of data and owner. This drawing should be approved before cables are pulled and before control cabinets are shipped.

Name the controlling device for each function

Two controllers should not compete for the same setpoint. State which device controls charge and discharge power, reactive power, export limits, SOC reserve, PV curtailment and generator interaction. If a third-party building controller can send commands, define whether it can override the EMS or only request a mode. Unclear authority is a common cause of oscillation and unexplained alarms.

Agree on the fallback behavior

Every command path needs a safe default. Decide what the PCS does when the EMS stops sending setpoints, when the site meter is lost, when the BMS reports a fault or when the remote platform disconnects. Typical options include holding the last valid value for a limited time, ramping to zero, entering standby or following a local schedule. The correct choice depends on the equipment and project; it should be documented rather than assumed.

Build a controlled point list

The point list is the working contract between devices. For each value, record the device, protocol, address or object reference, data type, byte and word order, scale factor, unit, sign convention, read or write access, update interval and expected range. Include status words, alarm bits and command acknowledgements, not only analog values.

Sign conventions deserve particular attention. One device may report battery discharge as positive power while another uses negative values. Import and export can be reversed in the same way. Write the convention next to every power, current and energy point, then verify it with a live test. Keep the point list under revision control so later firmware updates can be compared against the approved version.

When the supplier provides a standard interface, ask whether the project uses the complete model or only part of it. Industry information models such as those published by the SunSpec Alliance can reduce ambiguity, but the actual implemented points and firmware version still need to be confirmed for the delivered equipment.

Check the physical communication layer

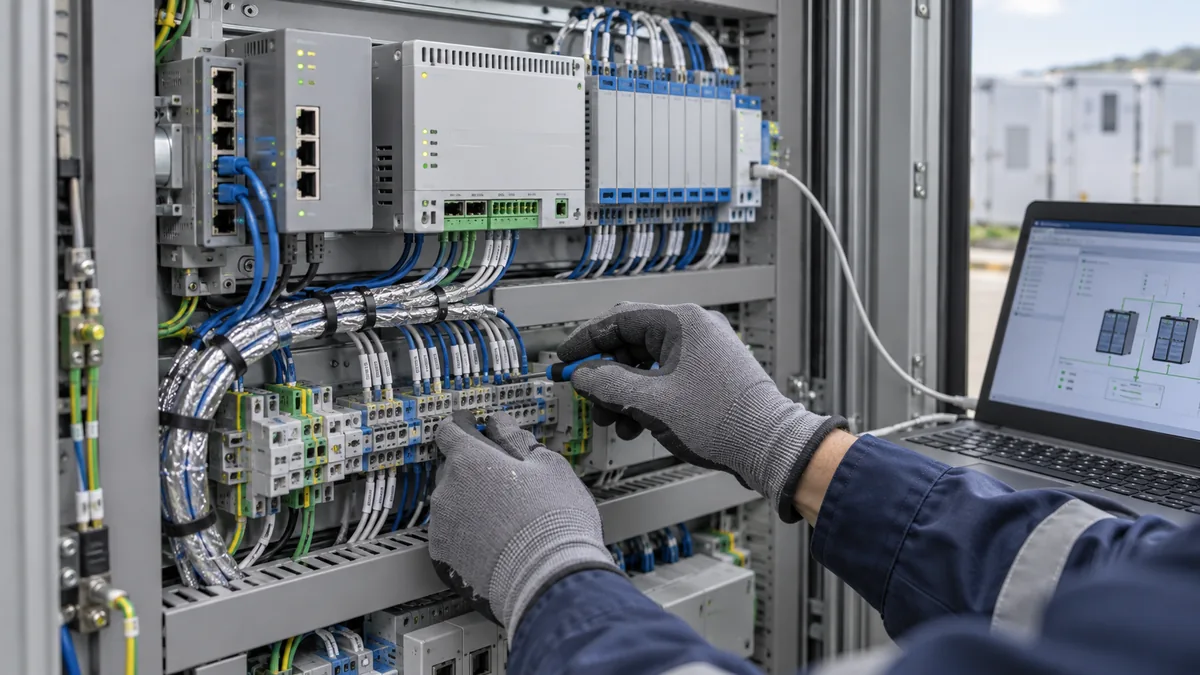

Many integration faults are physical. Confirm cable type, shielding, grounding practice, termination resistors, bias settings, maximum run length, device addresses, baud rates, parity and network topology. For Ethernet links, record IP addresses, subnet, gateway, VLAN where used, switch ports and any firewall rules. Label both ends of each cable with the same identifier used in the drawing.

Separate control communication from high-noise power cabling where the design allows, and keep spare capacity in the control cabinet for later meters or gateways. Before energized testing, confirm that every device responds with the expected identity and that polling does not overload a slow serial network. A link that works with one device may become unstable when the full site is connected.

Place meters and CTs where the control logic needs them

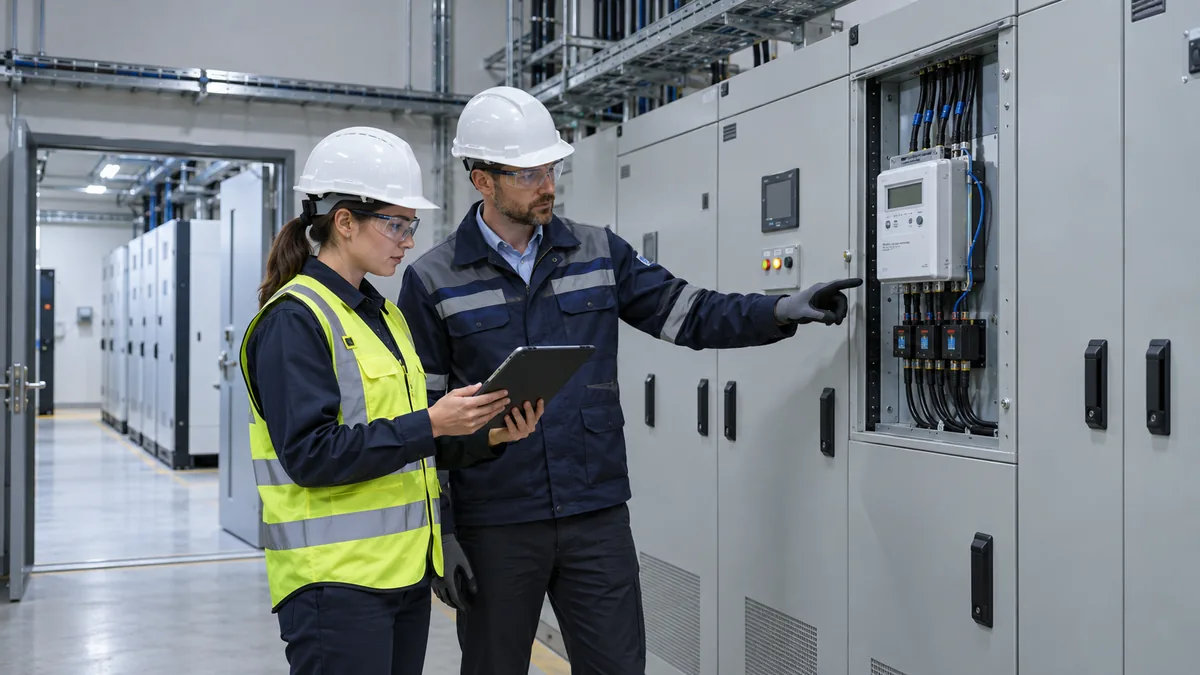

The EMS can only control what it measures. Confirm whether the control meter measures the utility point of connection, a feeder, the ESS output or a PV inverter. Record CT ratio, CT orientation, phase mapping, voltage reference and meter scaling. A reversed CT or wrong phase association can make the EMS charge when it should discharge or allow export that was supposed to be blocked.

Keep revenue metering, protection functions and EMS control measurement clearly separated in the documents. The same physical meter may serve more than one purpose only when that arrangement is approved. For peak-shaving applications, compare the EMS demand calculation with the utility billing interval and the method described in the C&I ESS peak-shaving data checklist.

Confirm time synchronization and data logging

Integration evidence is difficult to use when devices disagree about time. Define the time source, time zone and synchronization method for the EMS, PCS, BMS, meters and remote platform. Check whether logs record local time or UTC, and whether daylight-saving changes affect exported data.

Agree on the logging interval, retention period, export format and who can access raw data. Keep command history, mode changes, alarms and setpoint changes as well as measured values. These records support later performance reviews and warranty cases. The C&I ESS battery degradation monitoring checklist explains why consistent BMS and inverter logs matter over the life of the system.

Test operating modes one at a time

Do not begin with the full automatic strategy. Test read-only communication first, then manual setpoints at low power, then each operating mode separately. Record the command, time, acknowledgement, response time, stable result and any alarms. Increase power only within the approved commissioning procedure and equipment limits.

Peak shaving and demand limits

Simulate or wait for a load condition above the target and confirm that the EMS reads the correct site demand, calculates the required discharge and stops or reduces discharge when load falls. Check the behavior near the SOC reserve and after the battery reaches its discharge limit. The system should report unmet demand clearly rather than hiding it inside an average value.

Export limits, backup and islanding

Where export is restricted, confirm the response when PV output exceeds site load and when the battery is full. Where backup is in scope, test the transfer sequence, reserve SOC, load restoration and return to grid under the approved procedure. Do not treat a single successful test as proof for every season, load level or firmware version; record the conditions under which the test passed. PCS power and reactive-power limits should also agree with the C&I ESS PCS sizing checklist.

C&I ESS EMS integration checklist

Integration area	What to confirm	Evidence to keep	Common failure
Architecture	Devices, protocols, data direction and control authority.	Approved control diagram with revision.	Two controllers writing the same setpoint.
Point list	Addresses, data types, scaling, units and sign conventions.	Revision-controlled point list and firmware versions.	Wrong word order or reversed power sign.
Physical layer	Cable, shielding, termination, addresses and network settings.	Cable schedule, IP plan and cabinet photos.	Intermittent serial errors after full connection.
Metering	Meter location, CT ratio, orientation and phase mapping.	Meter settings and live comparison records.	Charging during a peak because of CT direction.
Control modes	Manual setpoints, automatic modes, ramps and limits.	Test sheet with commands, responses and alarms.	Mode passes once but fails near SOC reserve.
Fallback	Response to lost EMS, meter, BMS or remote link.	Signed fallback test results.	PCS holds an unsafe last setpoint.
Handover	Passwords transferred, settings backed up and logs exported.	Integration file with configuration backups.	Owner cannot restore settings after a replacement.

Handle alarms, trips and communication loss

Map each important alarm from its source device to the EMS and remote platform. Decide which alarms stop operation, which reduce power and which only notify the operator. Test representative alarms under controlled conditions and confirm that the event is time-stamped, visible, acknowledged and cleared correctly.

Communication loss should be tested deliberately. Disconnect a meter link, an EMS link and a remote-platform link one at a time within the approved procedure. Record how long it takes the system to detect the loss, which fallback it enters and how it recovers when communication returns. A system that recovers automatically should not produce a sudden power step unless that behavior has been accepted.

Log what the EMS actually received

When a control event is disputed, the useful question is not only what the meter measured, but what value the EMS received at that moment. Keep raw communication logs or diagnostic snapshots during commissioning where the equipment supports them. They can show stale values, scaling errors, dropped packets or delayed acknowledgements that are invisible in a summary dashboard.

Protect remote access and change control

Remote monitoring is useful for service, but it expands the attack surface and the risk of unapproved changes. Define who can view data, who can change setpoints, who can update firmware and how access is approved. Remove temporary commissioning accounts before handover and record all remaining accounts. The BESS cybersecurity checklist covers remote access, accounts, networks and logs in more detail.

Every later change to a point list, control strategy, firmware or meter setting should have a reason, approval, backup and post-change test. Keep the previous configuration so the site can be restored if the change causes unexpected behavior.

Hand over an integration file the owner can use

The handover file should include the approved control diagram, point list, network plan, device firmware versions, configuration backups, meter settings, test sheets, alarm map, fallback results, account list and contact path for support. It should be understandable by a qualified service team that did not participate in commissioning.

Link this file with the wider commissioning record in the C&I ESS commissioning checklist and the ongoing service record in the C&I ESS maintenance checklist. For project equipment options, review the C&I ESS product range, then send the load profile, control objectives and existing site devices through the SolarStorageHub contact page for a scope review. General background on storage technologies is available from the U.S. Department of Energy energy-storage overview.

FAQ

What is included in C&I ESS EMS integration?
It covers the control architecture, point list, communication links, meters, operating modes, alarms, fallback behavior, remote access and handover records that let the EMS, PCS, BMS and site devices work together.

Why is the EMS point list so important?
The point list defines addresses, data types, scaling, units and sign conventions. A small error can reverse power direction, misread SOC or send an incorrect setpoint.

What should happen if the EMS loses communication?
The response must be defined for the project and equipment. Common options are a timed hold, ramp to zero, standby or local schedule. The chosen behavior should be tested before handover.

Who should keep the integration file after commissioning?
The owner should receive the complete file, with copies available to the approved service provider. It should include configuration backups and the latest approved point list.
